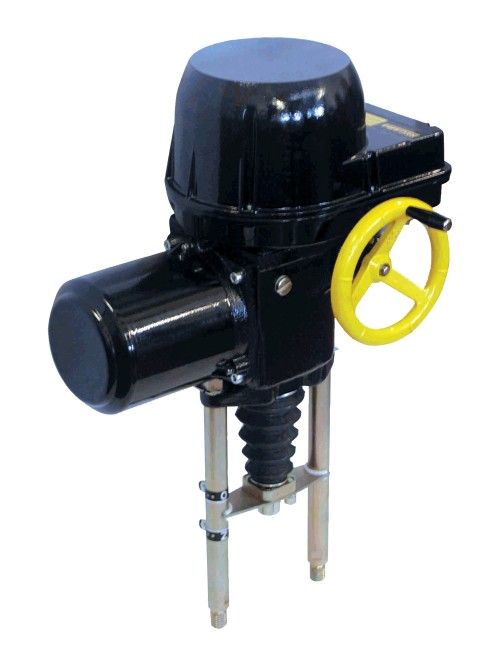

Electric linear actuator MT 3 / MT

Technical data

Type number: 52 400

Max. load thrust: 28 800 [N]

Switching-off thrust: 36 000 [N]

Operating speed: 32 to 180 [min-1]

Operating stroke: 10 to 100 [mm]

Ambient temperature: -25 to +55 [°C]

Protection enclosure: IP 55 (65)

Operating position: the motor axis should be in horizontal position

Weight: 25 to 30 [kg]

Standard equipment

Voltage 230 [V] AC, 3x400 [V] AC

Terminal board connection

2 thrust switches

2 position switches

Space heater

Pilar mechanical connection

Local position indicator

Thrust switches blocking in limit position

Manual control

Additional equipment

Voltage 3x380, 3x415, 3x500 [V] AC

Connector connection

2 additional position switches

Position transmitter with the following type of signal:

resistive 1x100 [?], 2x100 [?]

current from R/I converter 4 to 20 [mA] with/without power supply

current (a capacitive transmitter) 4 to 20 [mA]

Position controller 0/4 to 20 [mA], 0 to 10 [V]

Electric local control

Flange mechanical connection
