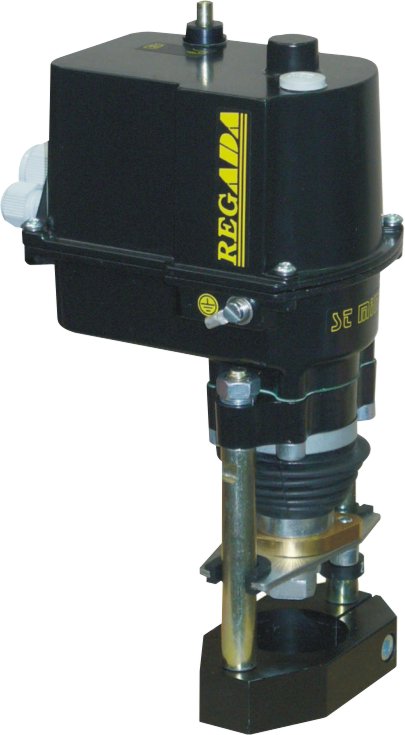

Electric linear actuator ST MINI

Technical data

Type number: 472

Max. load thrust: 1 000 [N]

Switching-off thrust: 250 to 1 100 [N]

Operating speed: 5 to 40 [min-1]

Operating stroke: max. 25 [mm]

Ambient temperature: -25 to +55 [°C]

Protection enclosure: IP 67

Operating position: any position

Weight: 3,3 to 3,7 [kg]

Standard equipment

Voltage 230 [V] AC

Terminal board connection

Control part execution:

1 thrust switch + 1 position switch

2 thrust switches

Mechanical position indicator

Pillar mechanical connection

Manual control

Additional equipment

Voltage 230 [V] AC

1 additional position switch

Position transmitter with the following type of signal:

resistive 1x100 [?], 1x2000 [?]

current from R/I converter 4 - 20 [mA] without power supply

Flange mechanical connection
