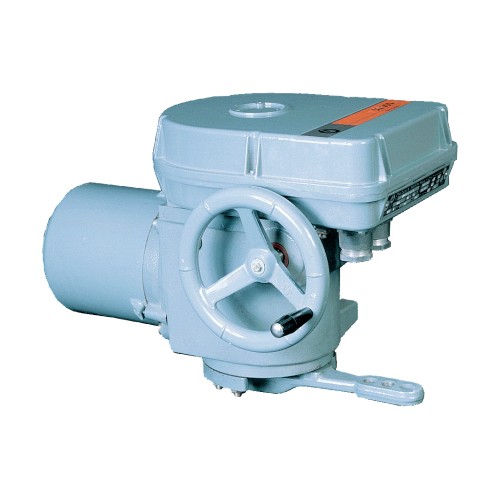

Electric part-turn actuator MP

Technical data

Type number: 52 200

Max. load torque: 100 [Nm]

Switching-off torque: 125 [Nm]

Operating time: 8 to 60 [s/90°]

Operating angle: 60° to 160° [°]

Ambient temperature: -25 to +55 [°C]

Protection enclosure: IP 55

Operating position: any position

Weight: 25 to 27 [kg]

Standard equipment

Voltage 230 [V] AC

Terminal board connection

2 torgue switches

2 position switches

Space heater

Local position indicator

Manual control

Additional equipment

Connector connection

2 additional position switches

Position transmitter with the following type of signal:

resistive 1x100 [?], 1x2000 [?], 2x100 [?], 2x2000 [?]

current from R/I converter 4 to 20 [mA] with/without power supply

current (a capacitive transmitter) 4 to 20 [mA]

Position controller 0/4 to 20 [mA], 0 to 10 [V]

Protection enclosure IP 65

Bolts

Pull-rod
